Our Dino Bulk Truck Loader is available in a number of pre-configured versions, enabling us to offer immediate solutions for many different scenarios. Does your production process require a customised Dino? In which case, with us you’re in the right place.
Van Beek offers versatile solutions in standard configurations, such as the Cement and ATEX versions. The Dino DS400 Cement is designed for the efficient handling of cement-like substances, whereas the Dino ATEX is designed for hazardous work environments and complies with all ATEX regulations, allowing external use in ATEX zone 20 internal and ATEX zones 21 or 22.
We know better than anyone that specific products serve specific functions. That’s why we are able to work closely with you to create a unique, tailor-made solution that seamlessly fits your needs.
| Image | Product | Description |
|---|---|---|
 |

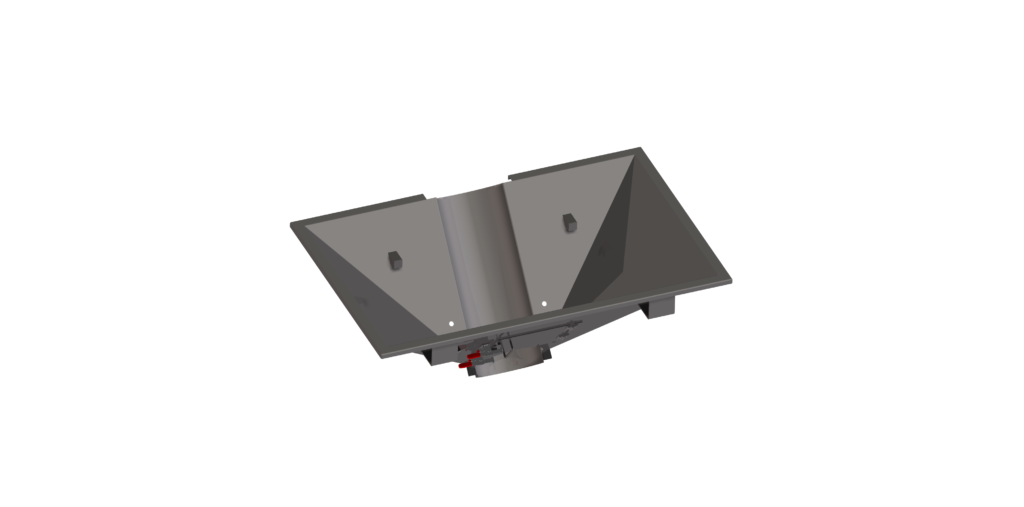

Steep wall hopper | 1200 x 1000 mm, angle 54° & 50°, improves flow behaviour |
 |

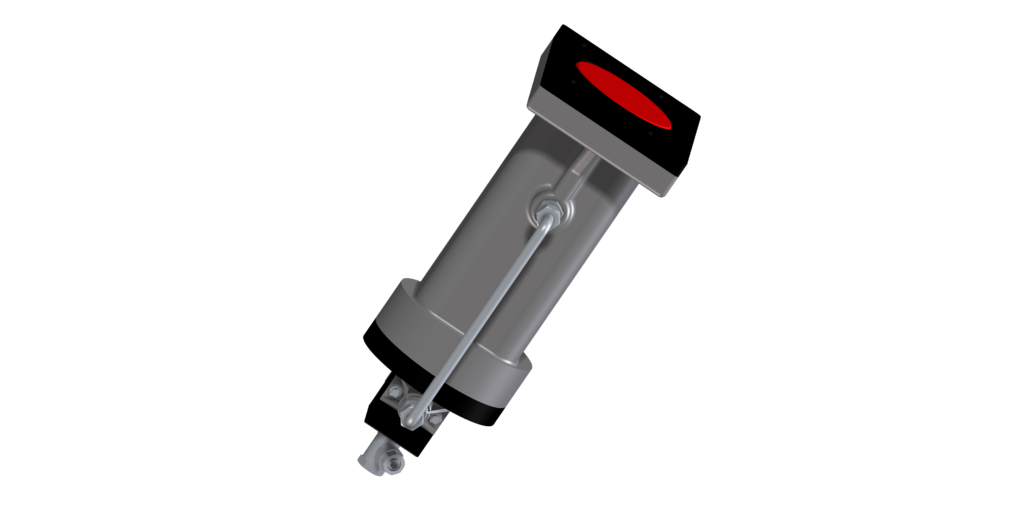

Pneumatic tappers | 2 pneumatic tappers on the side wall of the hopper |
 |

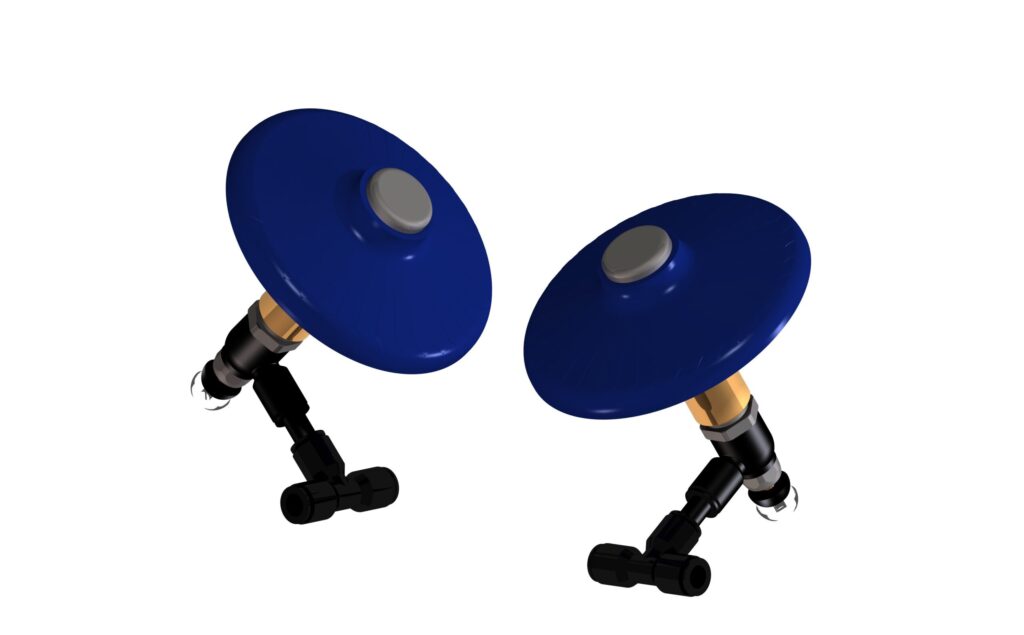

Aeration pads | Fitted at the bottom of the hopper, they create a layer of air between hopper and product |
 |

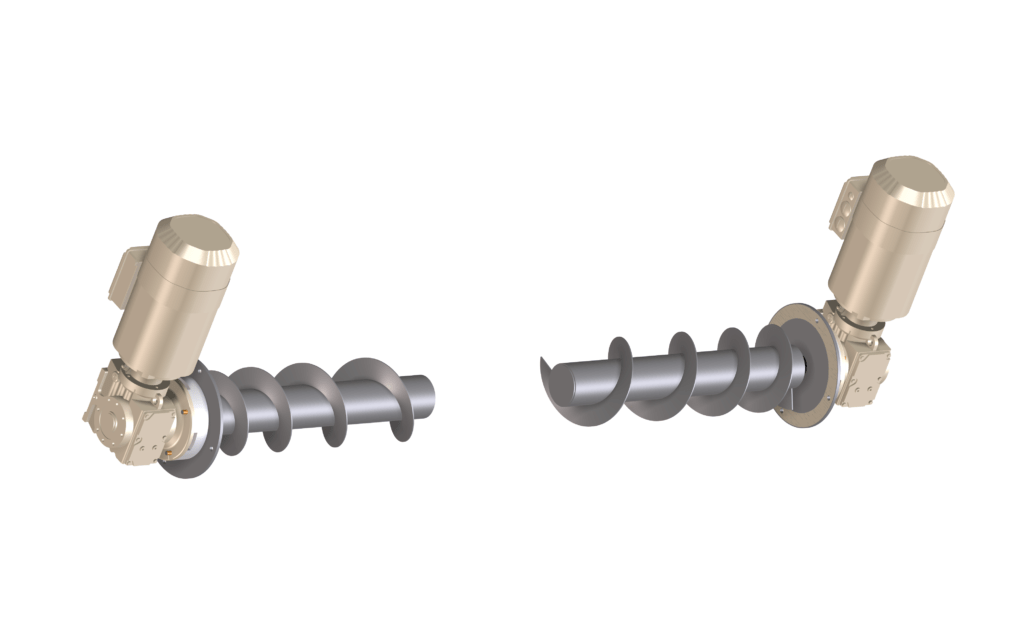

Forced feed | 2 horizontal screws that force feed the inclined screw conveyor |
 |

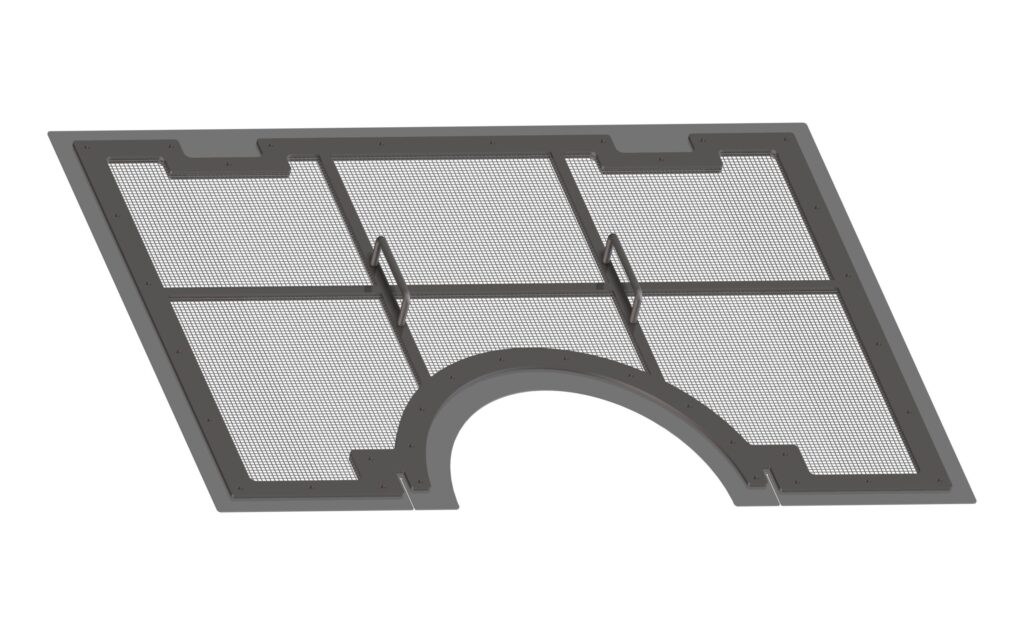

Alternative grid options | Different mesh widths available |
 |

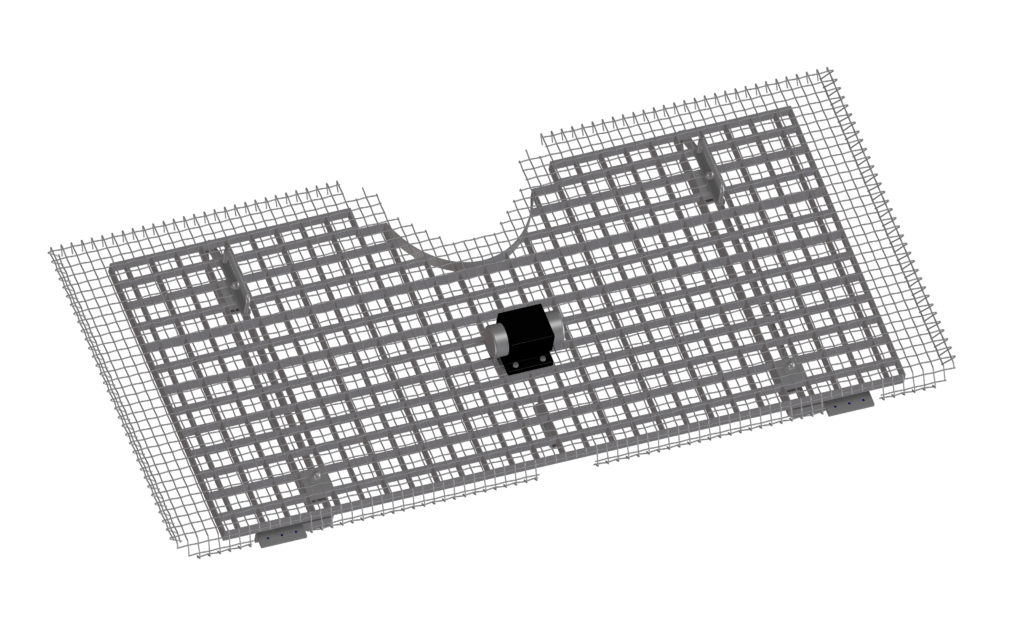

Screen with shaker motor | Fitted in the standard grid, improves flow through screen |
 |

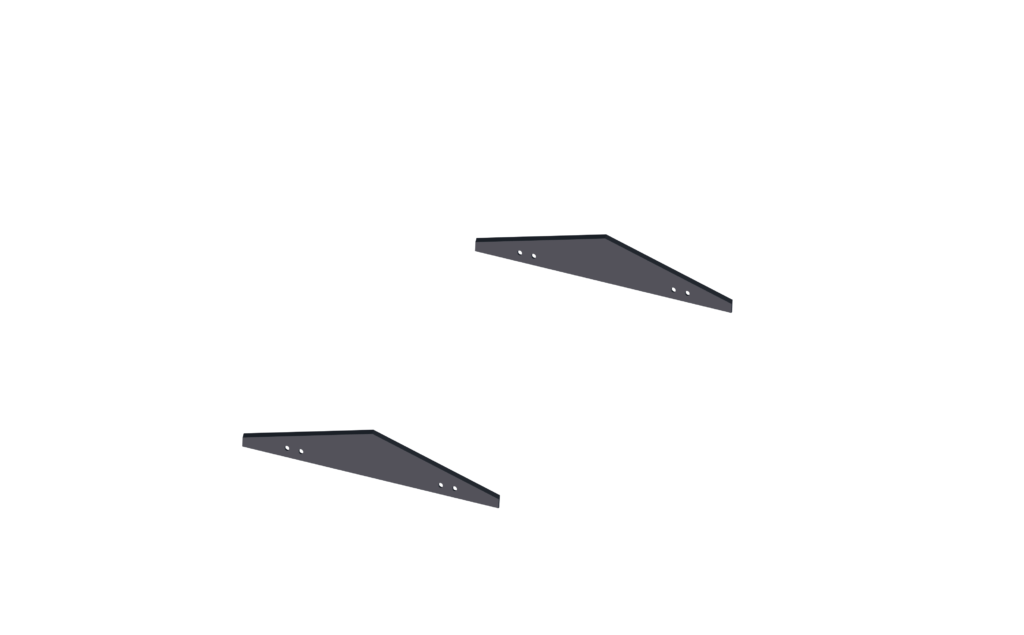

Cutters for 25kg sacks | 2 removable cutters for cutting open 25 kg sacks |
 |

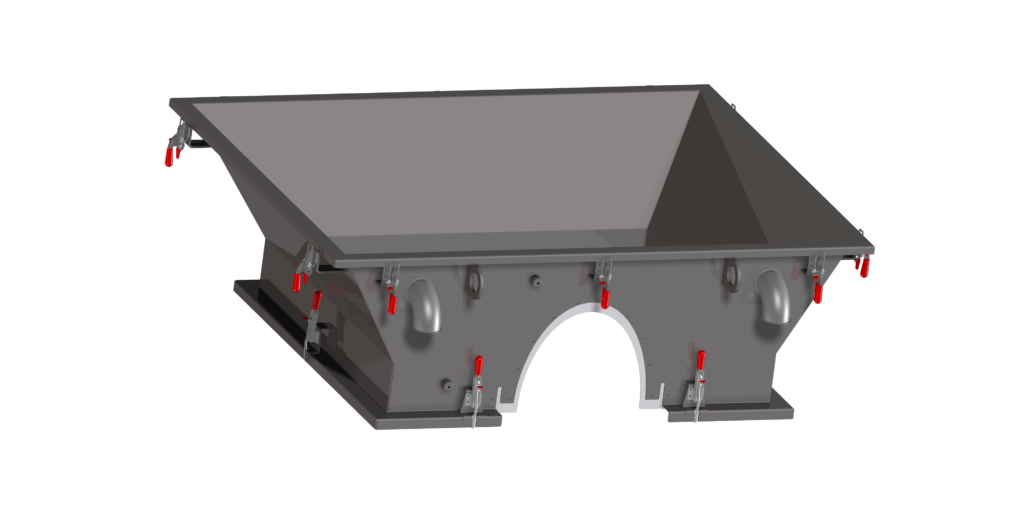

Hopper extension | Removable hopper in various sizes, fitted with Destaco quick toggle clamps |
 |

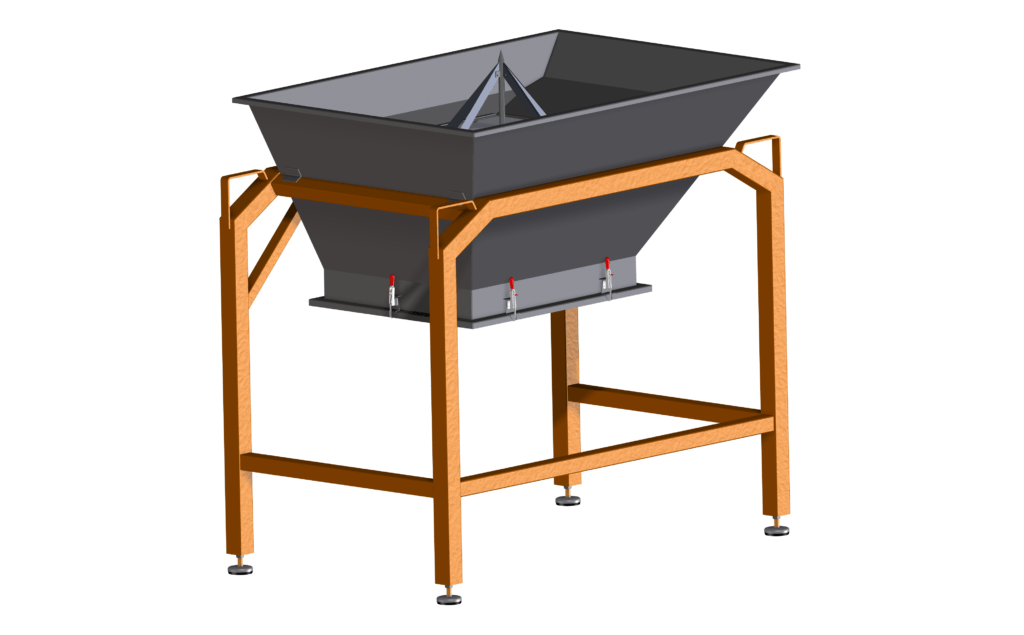

Hopper extension including big bag cutter | Hopper extension on separate frame fitted with big bag cutter |
 |

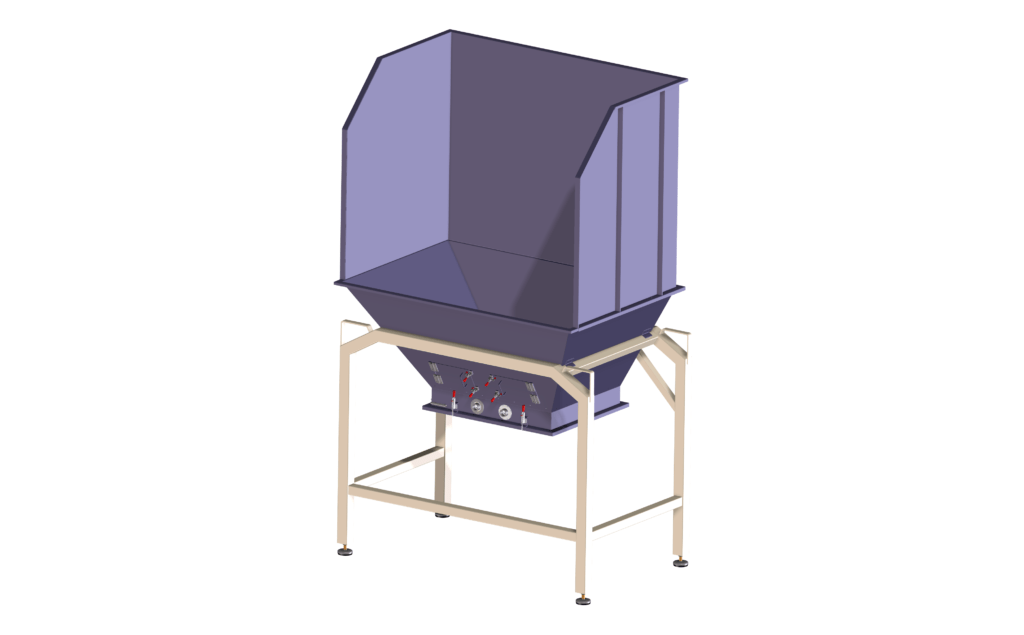

Hopper extension for shovel loading | Hopper extension on separate frame suitable for shovel or Bobcat loading |
 |

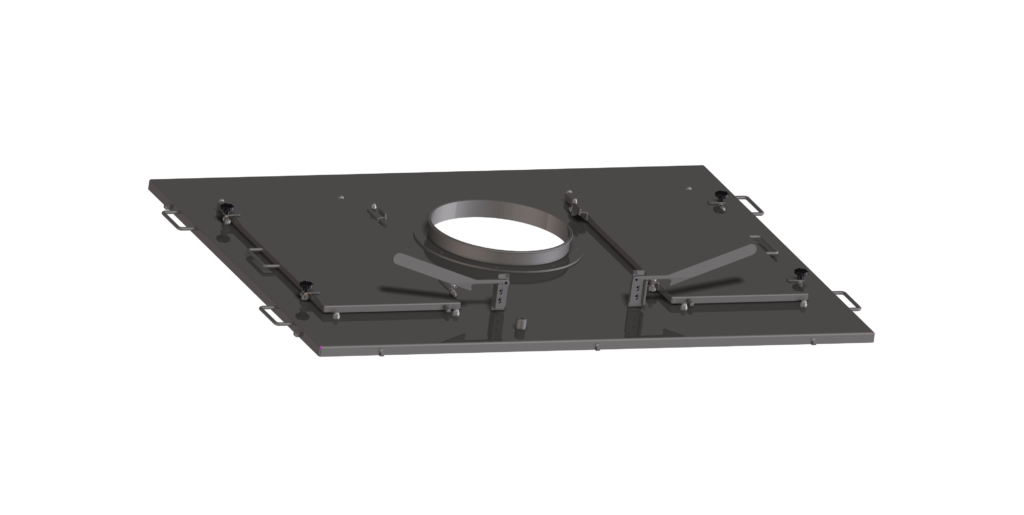

Hopper cover | Dust reduction cover for hopper, fitted with inlet and inspection hatch, reduces dust emissions from the hopper |
 |

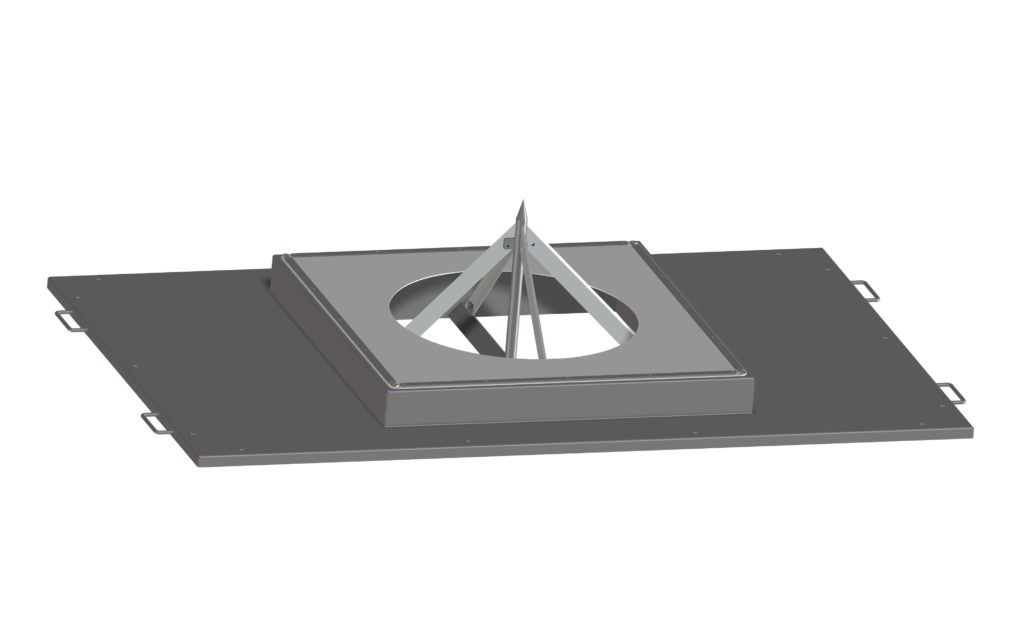

Cover with cutter | Dust reduction cover for hopper, fitted with big bag cutters, reduces dust emissions from the hopper |
 |

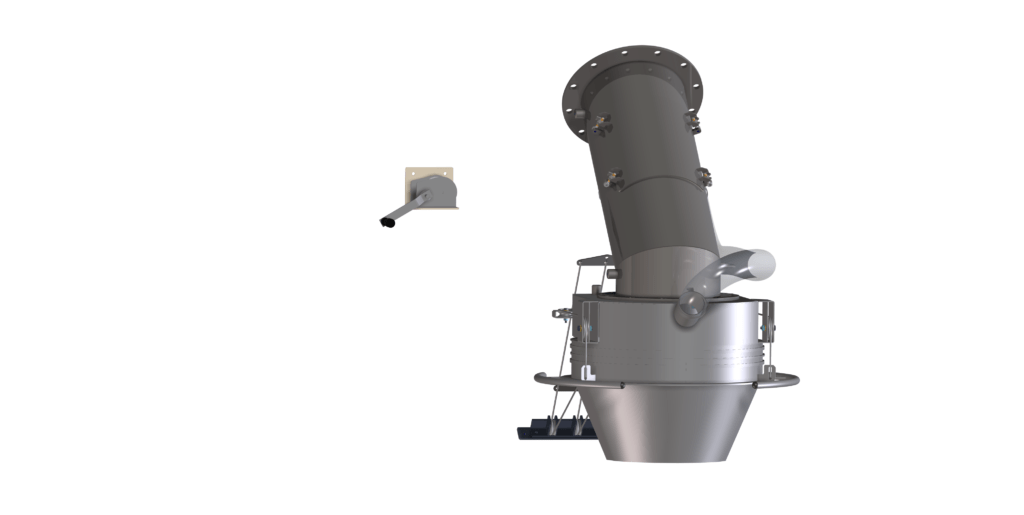

Loading bellows | Manually or electrically operated, reduces dust emission from the outlet, available option for complying with food guidelines or ATEX version |
 |

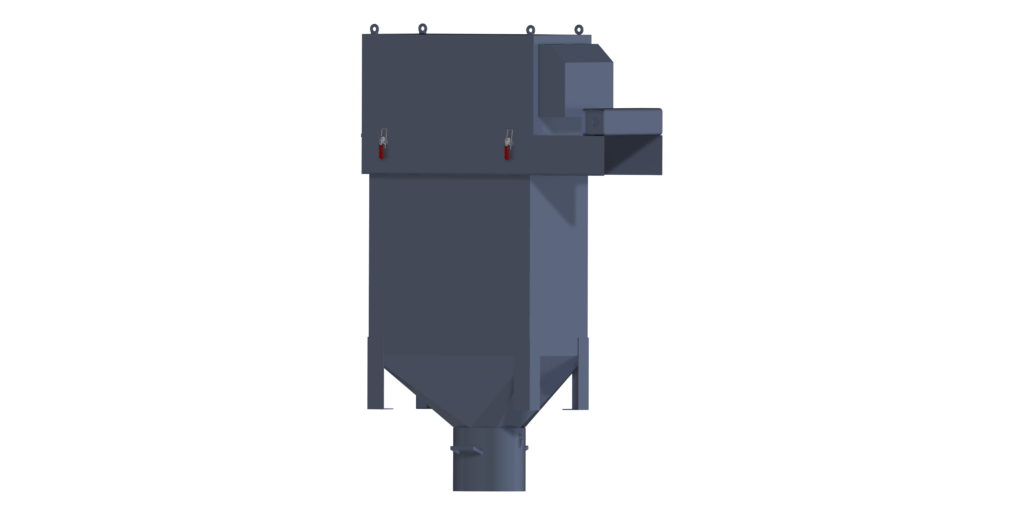

Dust filter | Integrated in the frame, reduces dust from the hopper and from the outlet side |
 |

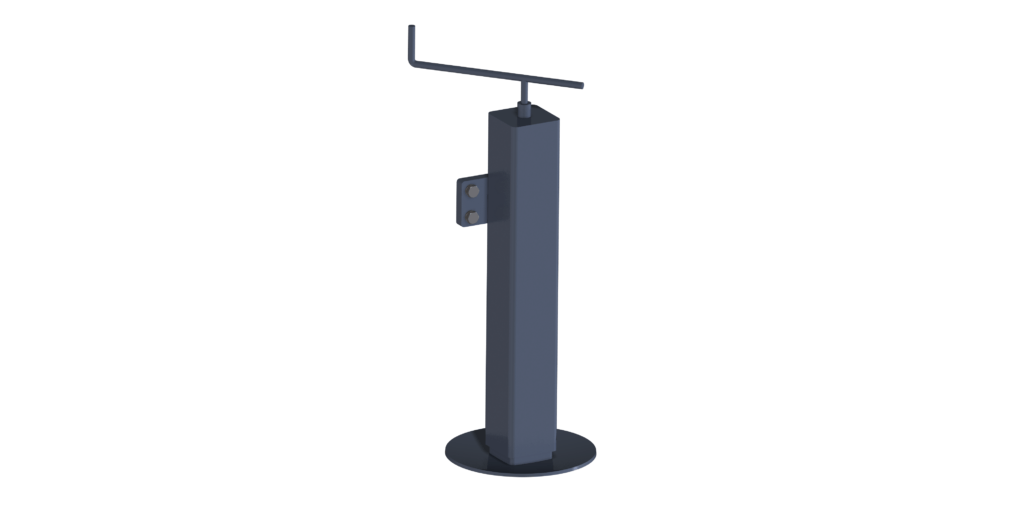

Extra props | 2 extra props under the frame for extra stability |
 |

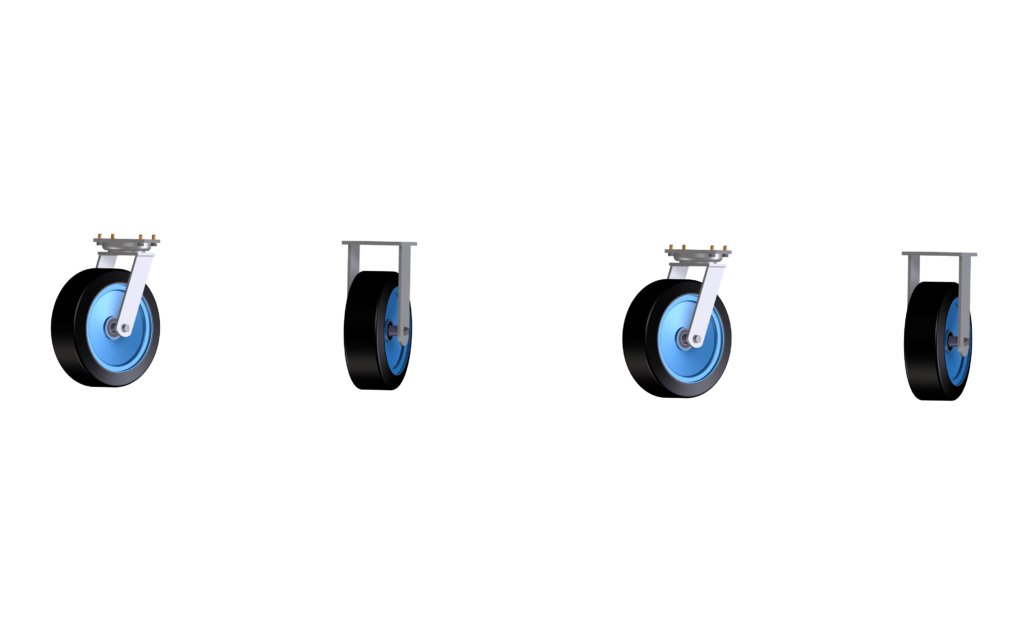

Solid wheels | Solid synthetic wheels to replace standard pneumatic tyres |
 |
Extension platform | Removable extension platform to provide extra working space around the hopper |
 |

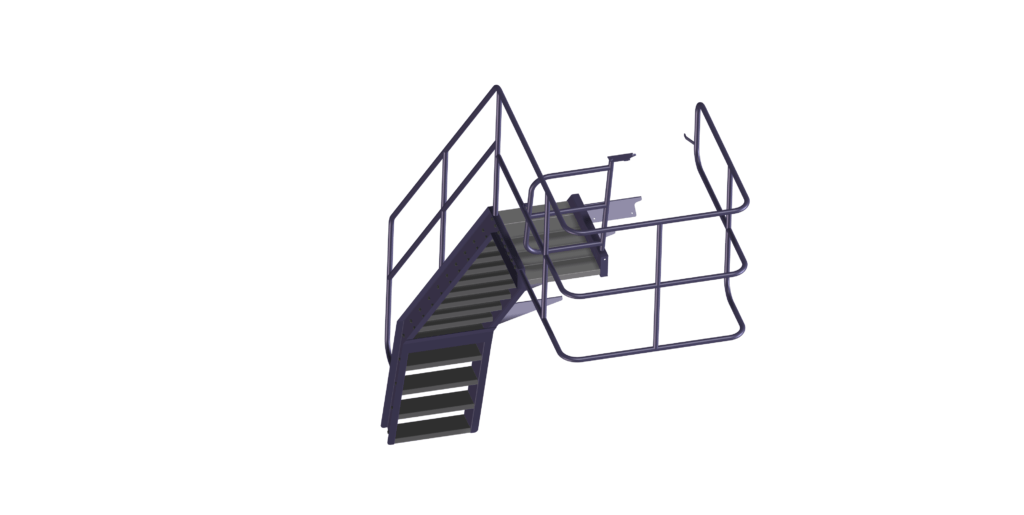

Safety cage | Cage structure at the top of the steps |
 |

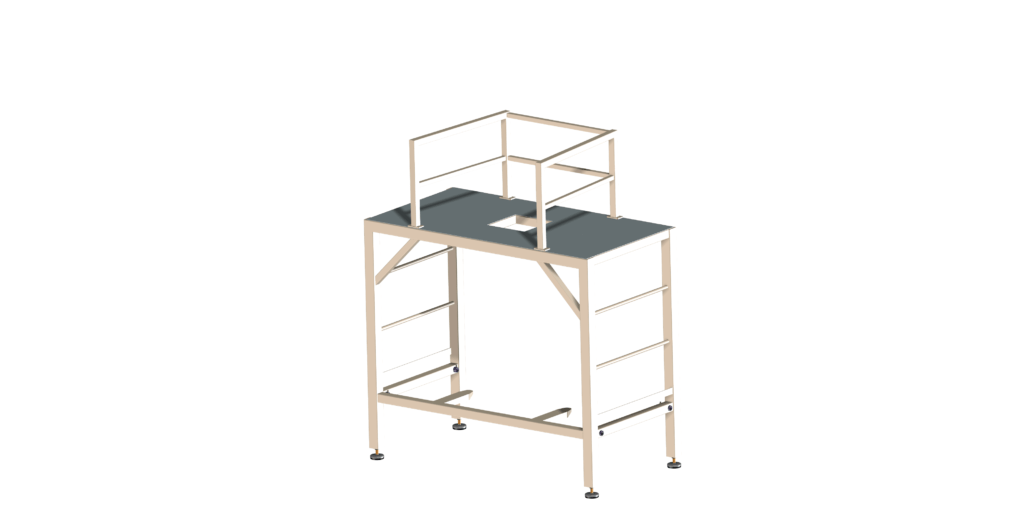

Big bag safety frame | Separate safety frame to restrain moving big bags |
 |

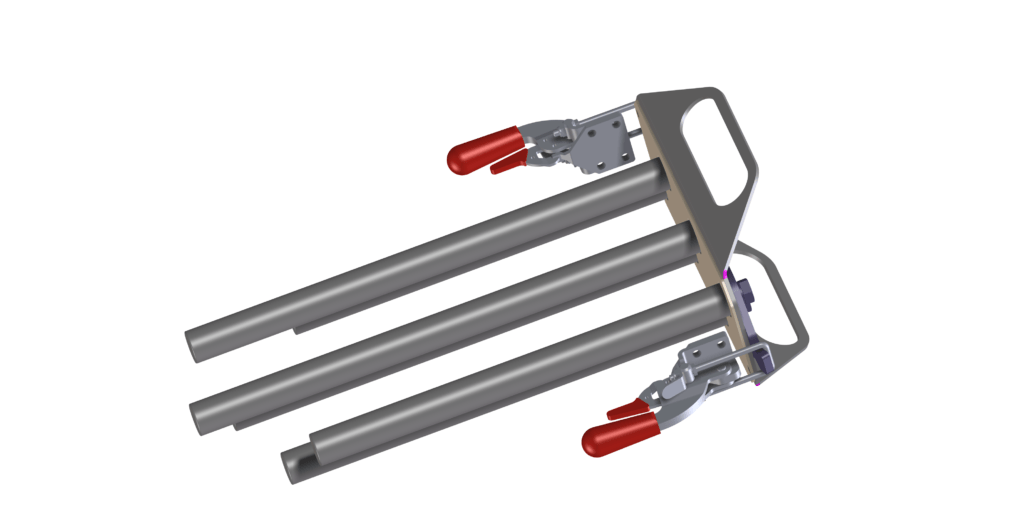

Metal detection | Removable magnetic bars in the outlet to remove metallic contaminants |
 |

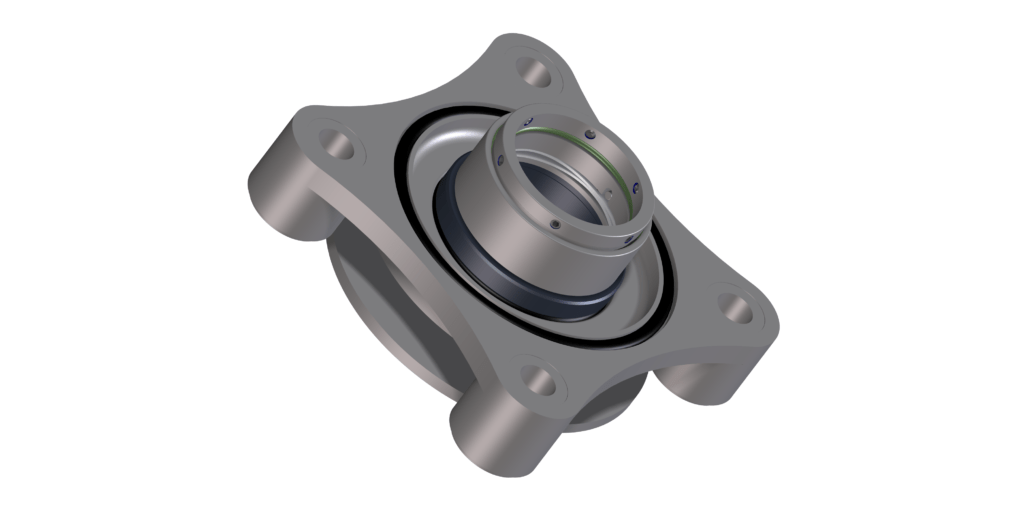

Mechanical seal | For replacing the standard air seal |
 |

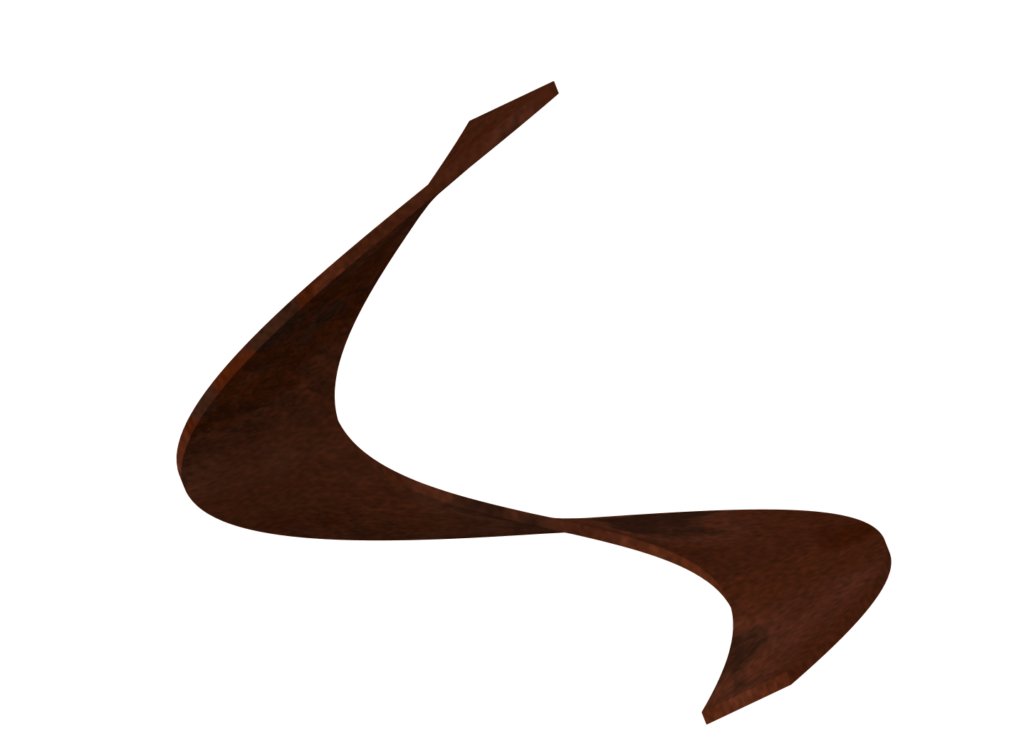

Hardox screw blades | Steel screw blades for extended wear resistance for abrasive products |
 |

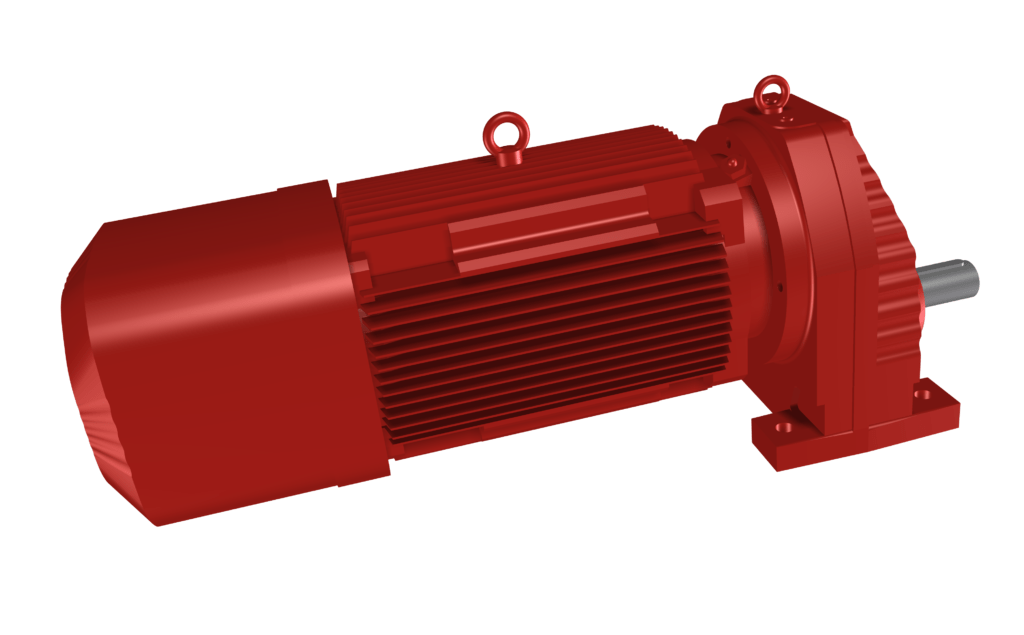

Heavier duty drive | To provide sufficient power and (breakaway) torque for products with a bulk density above 1.1 or extreme filling |
 |

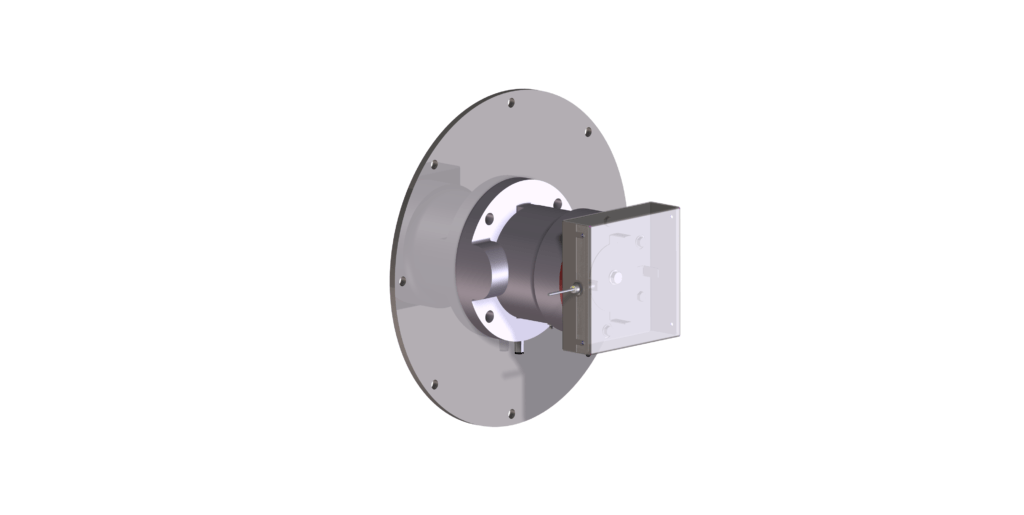

Speed monitoring | For monitoring screw rotation, used mostly for screw breakage detection in an ATEX environment |
